304 Stainless Steel Automatic Bi-direction Flap Barrier Gate for Access Control Turnstile

Name: 304 Stainless Steel Automatic Bidirection Flap Barrier Gate for Access Control Turnstile
Brand: WEJOIN
Price: 1 USD

Place of Origin : China

Brand Name : WEJOIN

Certification : CE,ISO

Model Number : WJDZ201

MOQ : 2pcs

Price : negotiation

Packaging Details : Wooden box

Delivery Time : 10-30 days

Payment Terms : Ex works

Supply Ability : 50PCS/week

Contact Now

304 Stainless Steel Automatic Access Control Flap Barrier Gate

Automatic Access Control Flap Barrier Gate Stainless Steel 110V / 220V

Quick Details

Material: 304 stainless steel
Function: automatic
Direction: bi-direction
Power supply: AC220V±15%, AC110V±15%
Motor voltage: DC12V (brush motor)
Working temperature: -25°C~50°C

Product Overview

The WEJOIN intelligent flap barrier represents a brand-new product offering, serving as an upgraded version of traditional tripod turnstiles and swing barriers. This high-tech solution is designed for sophisticated pedestrian access control applications.

Manufactured with precise craftsmanship and comprehensive functionality, WEJOIN flap barriers integrate mechanical, electronic, and CPU control systems with various personal authentication technologies. The system is compatible with IC cards, ID cards, barcode readers, and fingerprint identification units.

Available in single motor (for single lanes) and double motor (for multi-lane) configurations, these barriers can be customized with different identification equipment and security protection devices to create intelligent access control management systems that comply with fire safety requirements.

Applications

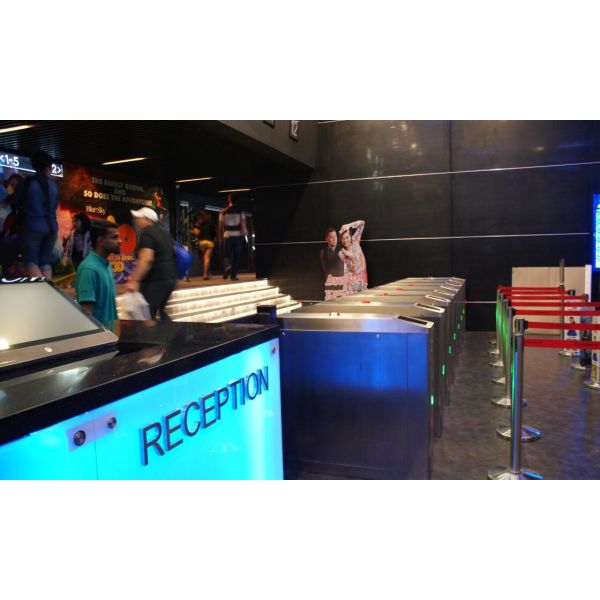

High-class communities, intelligent buildings, hotels, subway stations, and other high-level venues requiring sophisticated access control.

Functions & Features

Integrated mechanical and electronic structure with special drive style and reliable auto-locking solution
Built-in malfunction self-detection for easy operation and maintenance
Operational mode configuration through built-in control board menu
Flap auto-reversing when encountering external force
Audible and visual alarm for unauthorized access attempts
Anti-collision function - flaps remain closed without open signal
Synchronized flap operation
Auto-reset function with adjustable timing
Flaps open during power failure and auto-close when power restores
Compatibility with diverse access control devices
Configurable for single or bi-directional pedestrian flow
Two-way traffic light indicators for pass/no-entry status
RS232 and LAN connectivity for computer integration

Technical Specifications

Model	WJTY201
Cabinet Dimension	1200mm(L)×270mm(W)×1000mm(H)
Stretching-out Flap Length	275mm
Maximum Lane Width	600mm
Cabinet Material	304 stainless steel
Power Supply	AC220V±15%, AC110V±15%
Motor Voltage	DC24V (brush motor)
Access Device Input Voltage	Dry contact or 12V electrical level signal or ＞100ms 12V impulse signal or driving current ＞10mA
Maximum Flow Rate	30~40 people per minute
Flap Opening/Closing Time	1 second
Reset Time When Power On	3 seconds
Protection Grade	IP32
Working Environment	Outdoors (with shelter) and indoors
Working Temperature	-10°C~50°C
